INNOVATIVE SOLUTION OUT OF ONE HAND !
We at HAIMER see ourselves as a system provider along the complete value chain of tool holding. With our extensive tool holder program, a associated balancing and shrinking technology, our tool management logistic system, as well as the 3D measuring instruments and our new power mill tools, we are offering you a perfectly coordinated product portofolio.
Take advantage of our full technical know-how and many years of experience in tool holding technology. With our products we support you reducing your manufacturing costs sustainably and achieving a long term competitive advantage for your company.

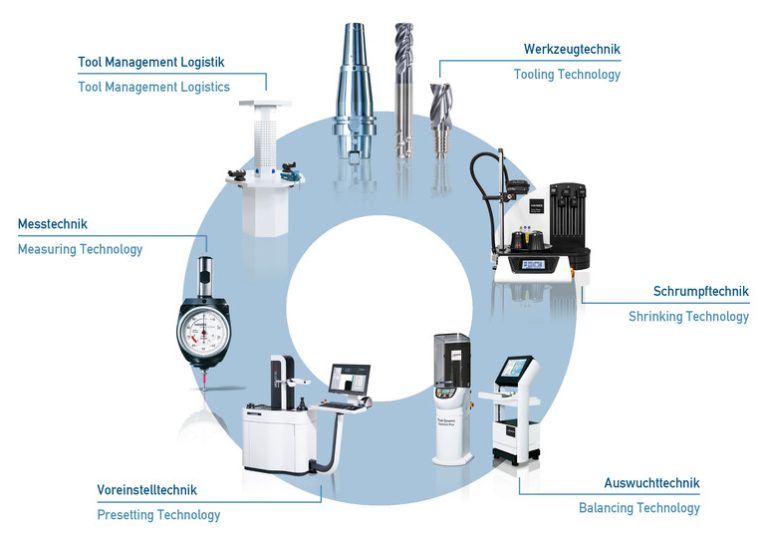

Product Categories

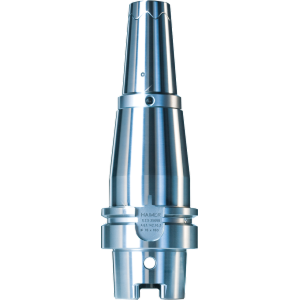

Power Shrink Chuck
DIN 69893-1 · HSK-A63 - Shrink fit chuck suitable to all inductive shrink fit units, designed for highest machining capacity in high-speed manufacturing:
• High runout accuracy (< 0.003 mm) and low vibration tendency thanks to optimised outer geometry.
• Slim design at the top with a rigid shank and standard resealable Cool Jet bores.
• Increased machining capacity due to higher spindle speed, higher feed rate, and larger cutting depth.
• Integrated dirt groove in the clamping bore for safe clamping force, with optional Safe-Lock™.

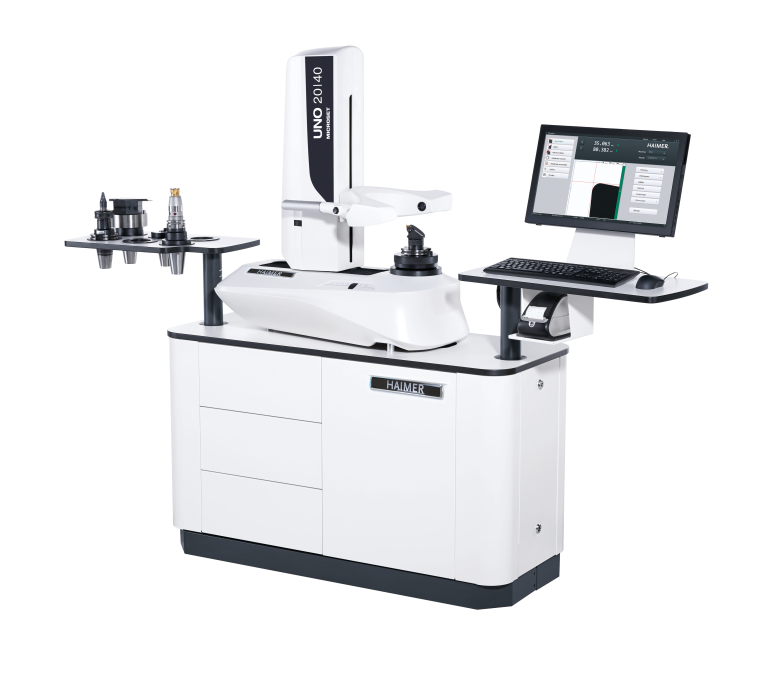

Presetting Technology
Save time and money, improve workpiece quality: The efficient tool presetting equipment from HAIMER Microset optimises your machining processes from the ground up:
• Reduces up to 70% of setup time (cutting total setup time from 250 seconds down to 70 seconds).
• Minimises machine idle time, rejects, and overall tooling costs.
• Improves tool life, surface finish quality, and overall process reliability in production.

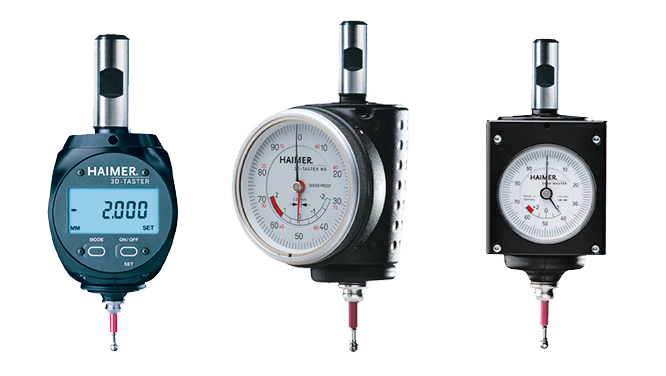

3D-Sensor New Generation
Further development of the worldwide proven Universal 3D-Sensor with improved mechanics and a compact, easy-to-grip IP67 waterproof design:
• Utmost precision of 0.01 mm with a marked safety overrun distance.
• Precise spindle position display with a large 1/100 mm dial gauge.
• Functions: Aligning machine spindles to workpiece edges and reference edges (X-, Y-, Z-axis), setting zeros, centring borings and shafts, measuring lengths/depths, checking surface straightness and levelness, and aligning workpieces and vices quickly without calculation errors.

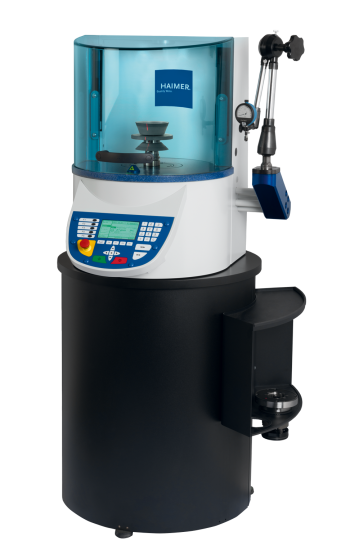

Balancing Machine
Tool Dynamic TD 1002: Modular table-top balancing machine designed to measure and compensate unbalance in one plane (static):
• Ideal solution for mould makers, small batch lots, single applications, and standard chucks.
• Optimised for balancing grinding wheels with adapter clamping systems (HSK or SK) and balancing arbors.
• Operated via an integrated keyboard and screen, with an optional runout measuring device for radial and axial runout checks.
