GOOD, SMOOTH RUNNING OF TOOLS AND OTHER ROTATING BODIES IS INDISPENSABLE.
Use the balancing machines TS20, TS40, TS100 for tool and workpiece testing.
For all tools, e.g. SK and BT from size 10 – 50 and HSK from size 25 – 100, as well as CAPTO and KM holders. Ideal for 1- and 2-plane balancing.
• You save time and money.
• You gain security.
• Your machine spindles live longer.
• Your production result will be better.

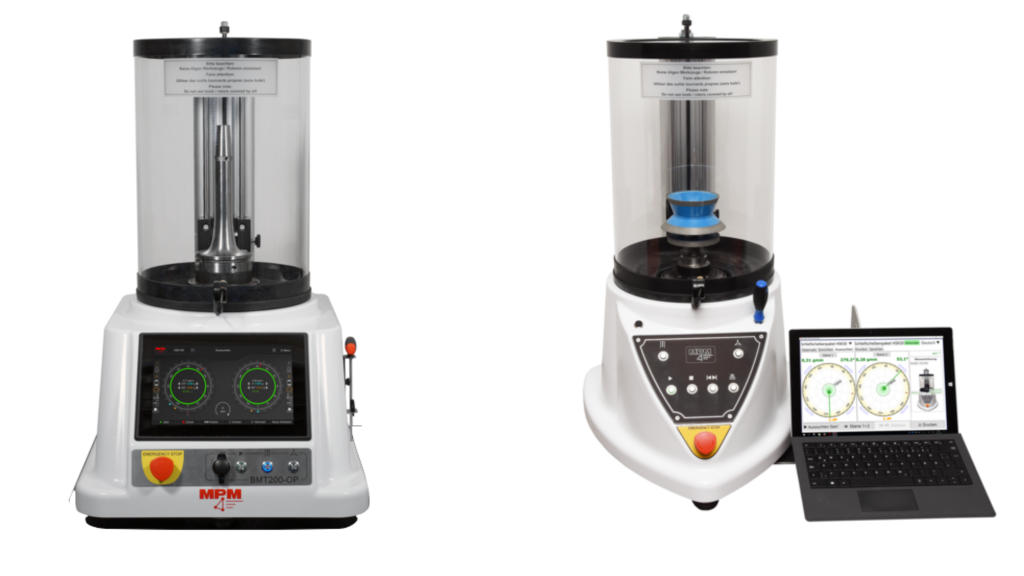

Stand alone balancing station BMT200.OP
No software installation needed. For tool holders up to HSK125 / SK50 / PSC 8.
• Highest balancing accuracy at the best price
• Simplest operation for everyone
• Smallest (< 0.1 gram) imbalances detectable
• Highest precision (< 0.5gmm)
• Improved ease of use > 90%
• For 1- + 2-plane balancing
• Balancing methods: gram, degree, spread angle, fixed location, radial + axial drilling, milling
• Display: gmm, gram, quality grade
• Workpiece weight up to max.: 20kg, workpiece-Ø up to approx. 270mm
• Workpiece length up to approx. 400mm
• Immediately usable & test report at the touch of a button
• Weight only approx. 50 kg
• HDMI interface for additional visualisation on an external monitor (only 3.BMT200-1(2).OP100.HDMI)

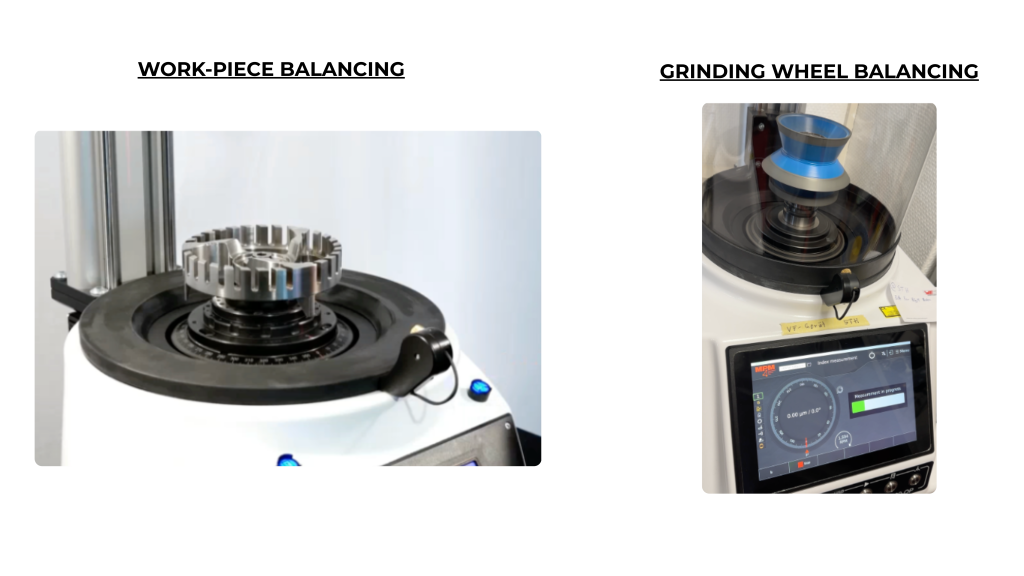

WORK - PIECE BALANCING GRINDING WHEEL BALANCING

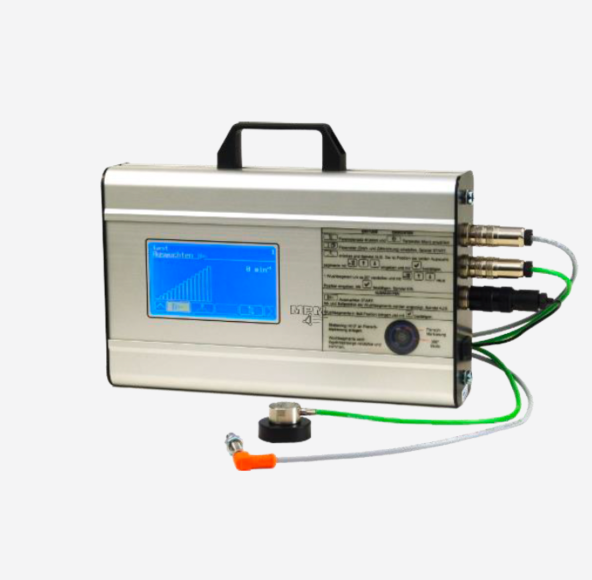

BMT - 150
Balancing electronics, mobile BMT. For all rotors that have to be balanced on machines. For balancing in 1 plane, e.g. on: Lathes, chucks, grinding machines, overhung rotors, etc.
• Proven many thousands of times over
• Simplest operation with touch screen
• International languages: DE / EN / FR / IT / CZ / BR / DK / ES / NL / SK
• Immediately usable with data output
• For speeds from 100 - 100 000 min⁻¹
• Sturdy, shapely aluminium housing
• Short delivery time & extremely inexpensive

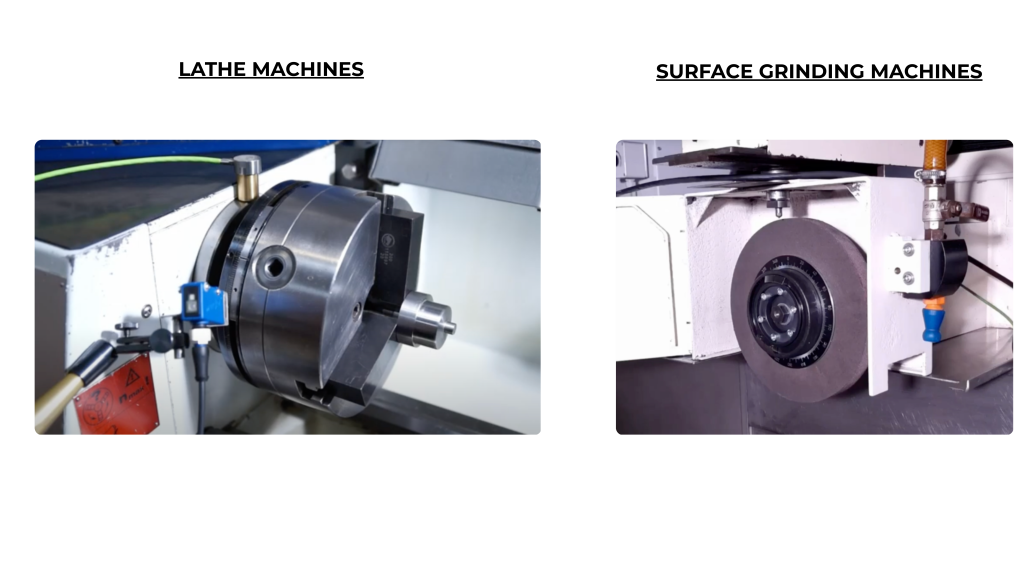

LATHE MACHINES - SURFACE GRINDING MACHINES
