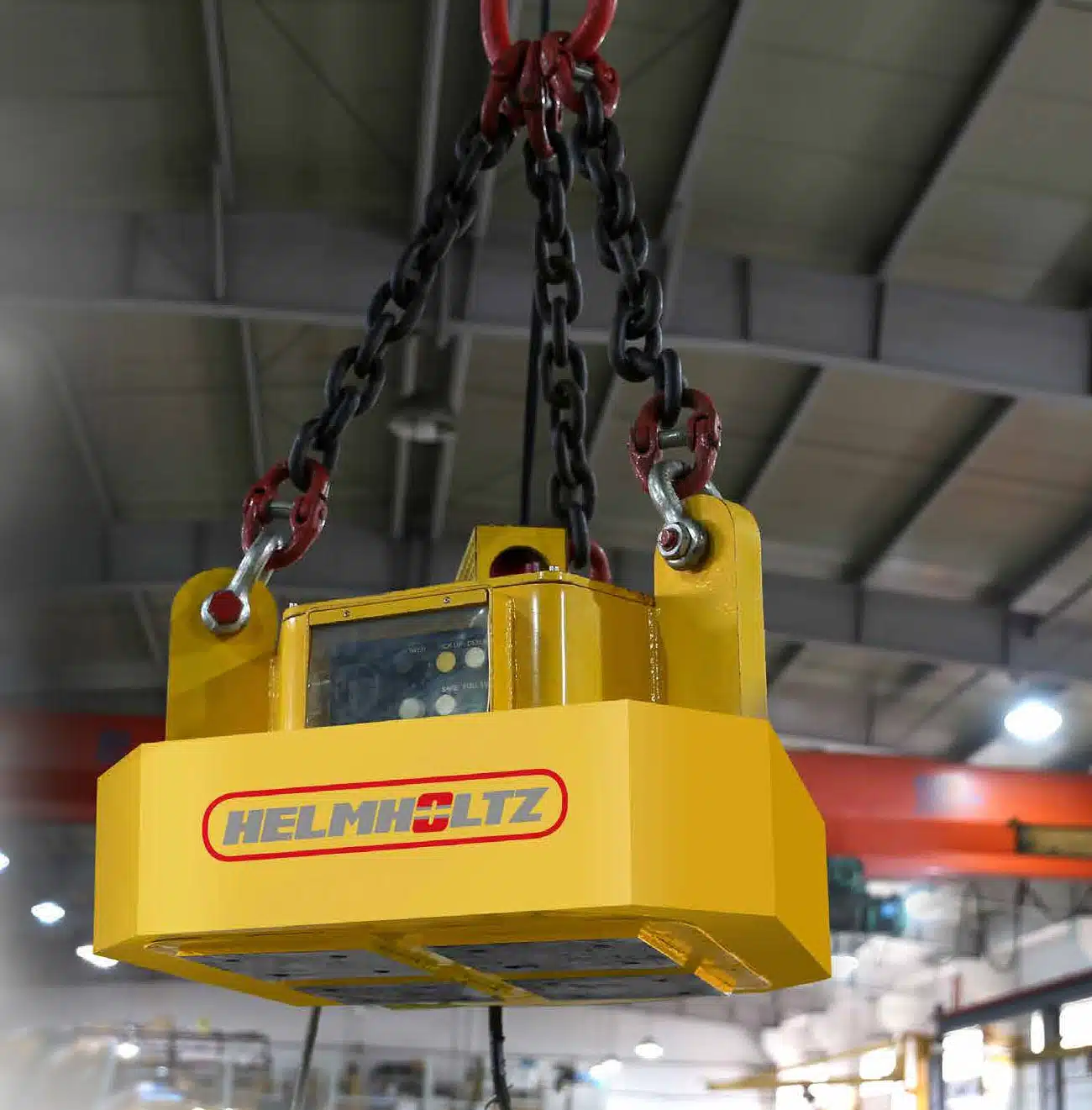

For handling slabs and forged blocks HPS permanent electro-magnetic modules are designed for lifting loads with large operational air gaps.

- 4-pole magnetic circuit for high force concentration
- High magnet strength.
- “ STEEL MILL TOUGH with 3.7” ” thick monobloc frame.

Standard Safety features: Electro-perm technology cannot drop a load due to loss of power
Test lift sequence prevents unsafe loads due to air-gap, load geomety, or actual load composition from being handled
Lifter status lights to insure the operator always knows the lifter status
Radio remote keeps the operator a safe distance while operating the magnet
Safety switch prevents de-mag unless the load is safely on the ground
CSS sensor to insure controller and magnet are working properly
Safe button to prevent accidental De-mag

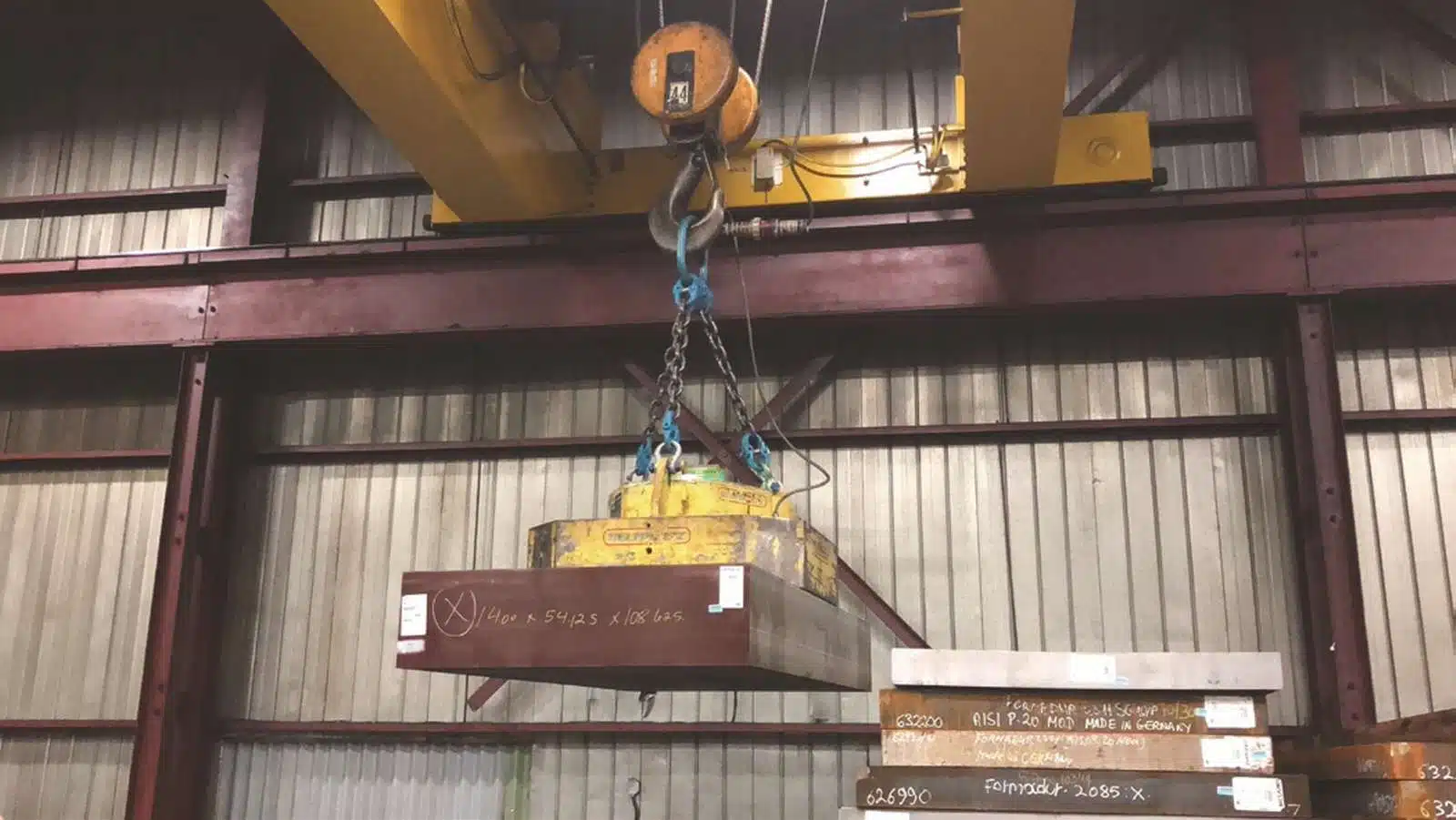

Applications: Steel service centers, Mold and die shop, Fabricators, Heat treating, steel mills, Steel warehouse, Job shops
Standard Operational Features:
- Adjustable power level for de-stacking plates and slabs as needed
- Radio remote
- No residual magnetism
- Low flux depth
- Adjustable test lift sequence
- Status lights
- Electro perm technology saves energy
- No moving parts to wear

Optional: 1. Removable poles shoes
2. Dual controls
3. Temperature sensor
4. Hi temp version available on request
5. DC power supply
6. Crane control interface
7. MSD sensor to check magnetic saturation each and every lift
