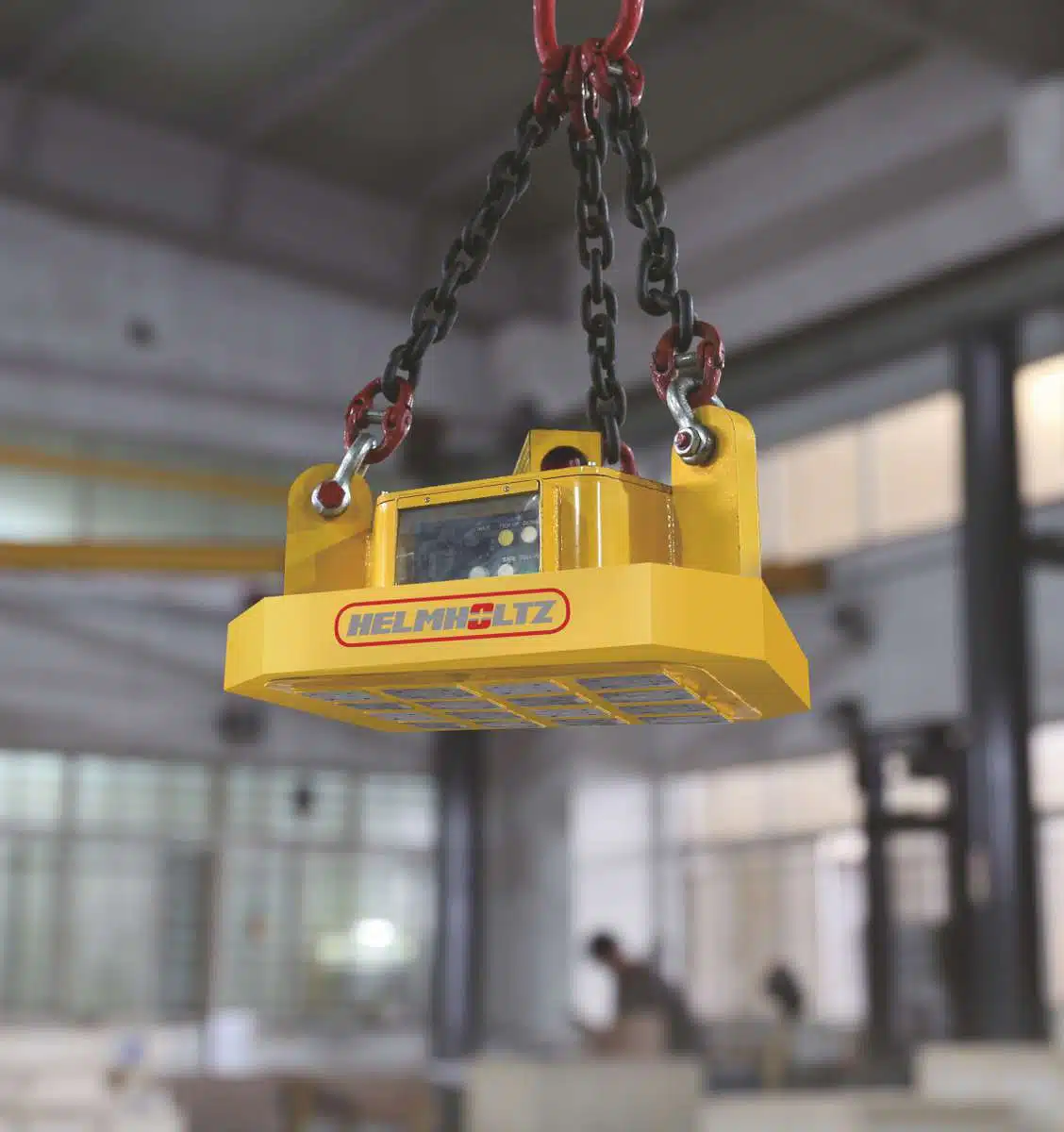

For handling single plates or semi finished blocks HPT electro-permanent magnetic modules are the ideal answer for handling plates or blocks.
Completely adjustable destacking down to 5 mm.
- Excellent power to weight ratio
-Multi-pole powered magnetic circuit insures no residual magnetism and high performance with a low flux depth for better versatility
-“ STEEL MILL TOUGH with 3.7” ” thick monobloc frame

Standard Safety features: Electro-perm technology cannot drop a load due to loss of power
Test lift sequence prevents unsafe loads due to air-gap, load geomety, or actual load composition from being handled
Lifter status lights to insure the operator always knows the lifter status
Radio remote keeps the operator a safe distance while operating the magnet
Safety switch prevents de-mag unless the load is safely on the ground
CSS sensor to insure controller and magnet are working properly
Safe button to prevent accidental De-mag

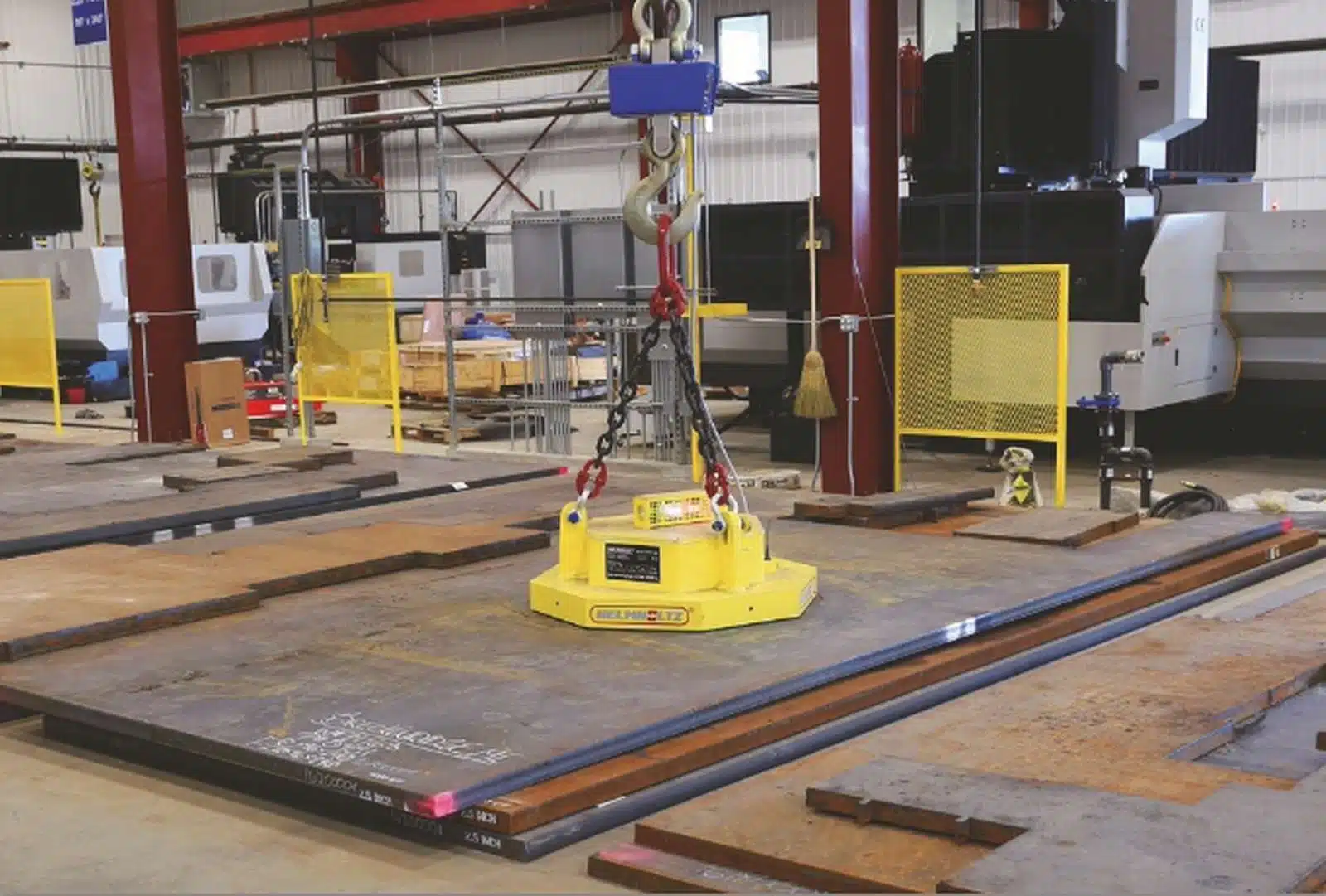

Applications: Steel service centers, Mold and die shop, Fabricators, Heat treating, steel mills, Steel warehouse, Job shops
Standard Operational Features:
- Adjustable power level for de-stacking plates and
- slabs as needed
- Radio remote
- No residual magnetism
- Low flux depth
- Adjustable test lift sequence
- Status lights
- Electro perm technology saves energy
- No moving parts to wear
- On board controls for easy installation

Optional: 1. Removable poles shoes
2. Dual controls
3. Temperature sensor
4. Hi temp version available on request
5. DC power supply
6. Crane control interface
7. MSD sensor to check magnetic saturation each and every lift
