Machinable Pitbull® Clamps

The popular Pitbull® Fixture Clamp is now available in a machinable version. The clamp has positive down force and a very low gripping profile, reducing material cost and number of operations.

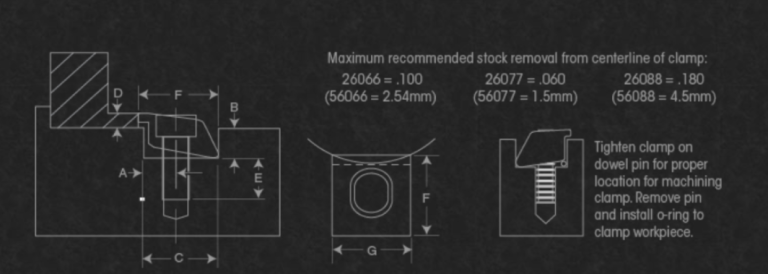

The Machinable Pitbull® Clamp is made of A2 tool steel and heat treated to about 43RC for long life, yet still machinable. There is additional material on the clamping face to allow for machining a radius. Available in three sizes from 3,600 to 12,000 lbs. (16,000 to 50,000 N.) of holding force. Dowel pins are included in each package to locate clamps while machining radius.

Unique Features of Pitbull® Clamps

Extremely low bite
Positive down force
High resistance to rip-out
Simple, sturdy, high quality design and components
Gain maximum tool access to your work
Virtually eliminate lost work
Great option with hydraulic
Tungsten Carbide coating can be added to increase holding force

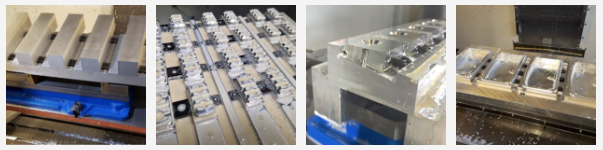

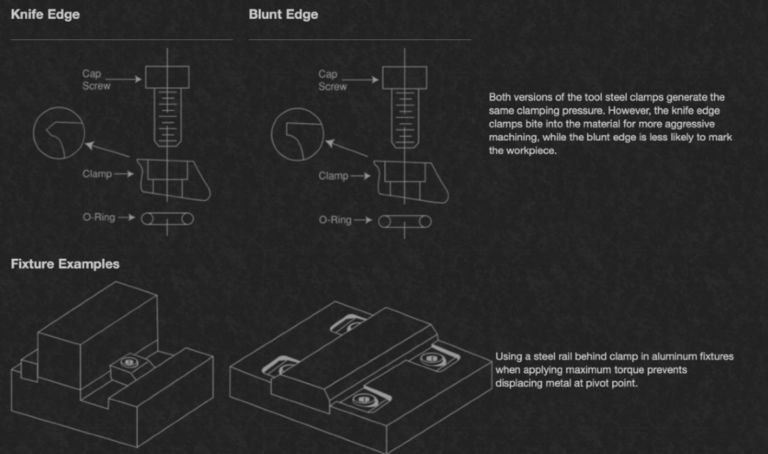

Creating Fixtures is Easy. . . Simply:

Machine a slot for the Pitbull® Clamp.
Drill and tap a hole for the cap screw.
Assemble the clamp as shown in the diagram.
Position clamp as shown in diagram and loosely screw to fixture.
Insert workpiece and tighten cap screw.
