Shrink fit chuck suitable to all inductive shrink fit units.

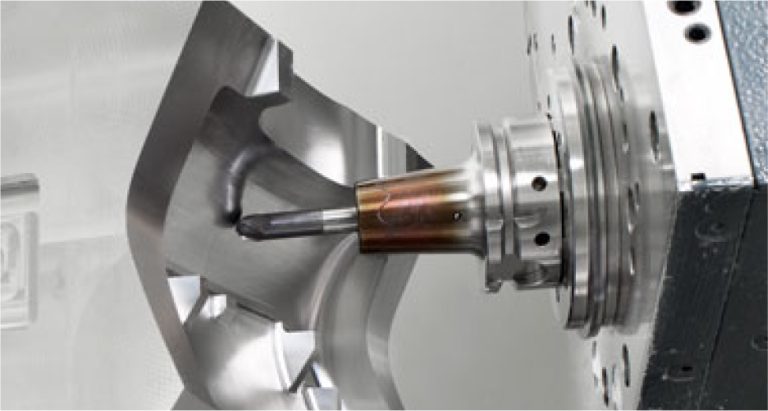

The Power Shrink Chuck is the shrink fit chuck for highest machining capacity in high-speed manufacturing. The optimized design combines high rigidity with dampening vibrations, therefore giving more protection to machines, spindles and tools.

Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
Shorter processing times
Higher machining accuracy
With threaded holes in order to balance with balancing screws
Cool Jet bores that can be sealed included
Cooling with Cool Flash for an extra charge
The long versions (A = 130 and 160 mm) with slim tips are especially versatile to use.

High rigidity
Slim at the tip
Dampen vibrations
High clamping force
Equally suited to high-speed manufacturing and heavy milling
Universal usage, saves space in tool magazine
Technical data subjects to change without prior notice.

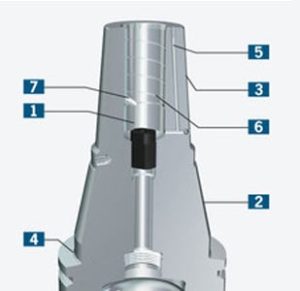

The most important features:


High runout accuracy (< 0.003 mm)
Low tendency towards vibrations by optimised outer geometry
Slim design at the top
Very rigid shank
Standard with Cool Jet (can be resealed)
Dirt groove in the clamping bore for safe clamping force
Safe-Lock™ (optional)
